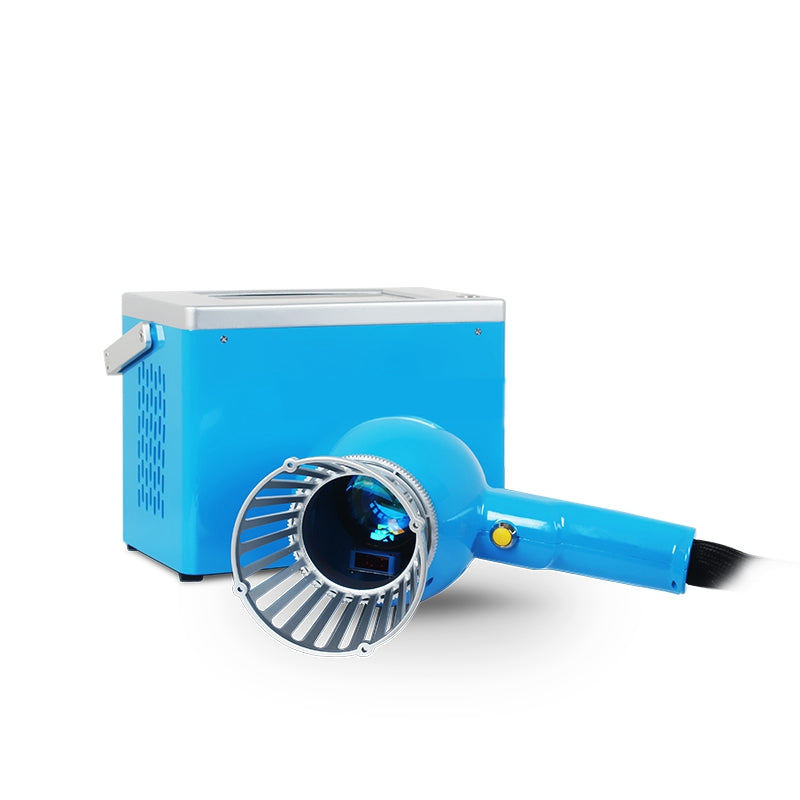

Discover the ultimate solution for your marking needs with the Q8 Model Handheld Laser Marking Machine. Its fiber laser technology allows for unmatched precision and speed, while its compact design and user-friendly software make it easy to use and maintain.
TECHNICAL SPECIFICATIONS
DOWNLOAD FLEX SPEC SHEET
| Model | Q8 | |
|---|---|---|

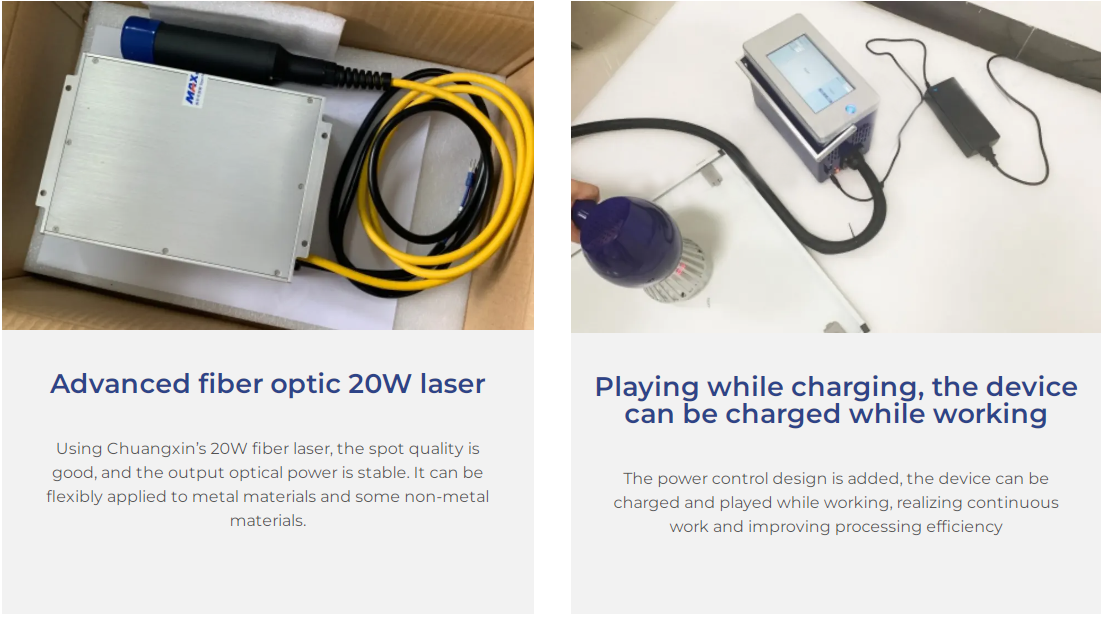

| Laser parameter | Laser source model | 20M / 30M |
| Outputpower | 20W /30W | |
| Beam quality M2 | ≤1.4 | |
| Pulse repetition frequency | 27-60 kHz | |
| Laser wavelength | 1064±5 | |
| Output power stability | ＜3% | |
| Working life | About 100,000 hours(Non-lifetime) | |
| Optical properties | Marking area | 75mm |
| Engraving depth | ≤1mm | |
| Engraving speed | ≤10000mm/s | |
| Repeatability | ±0.002 | |
| Min mark line width | 0. 1mm | |
| Minimum character height | 0.15mm | |

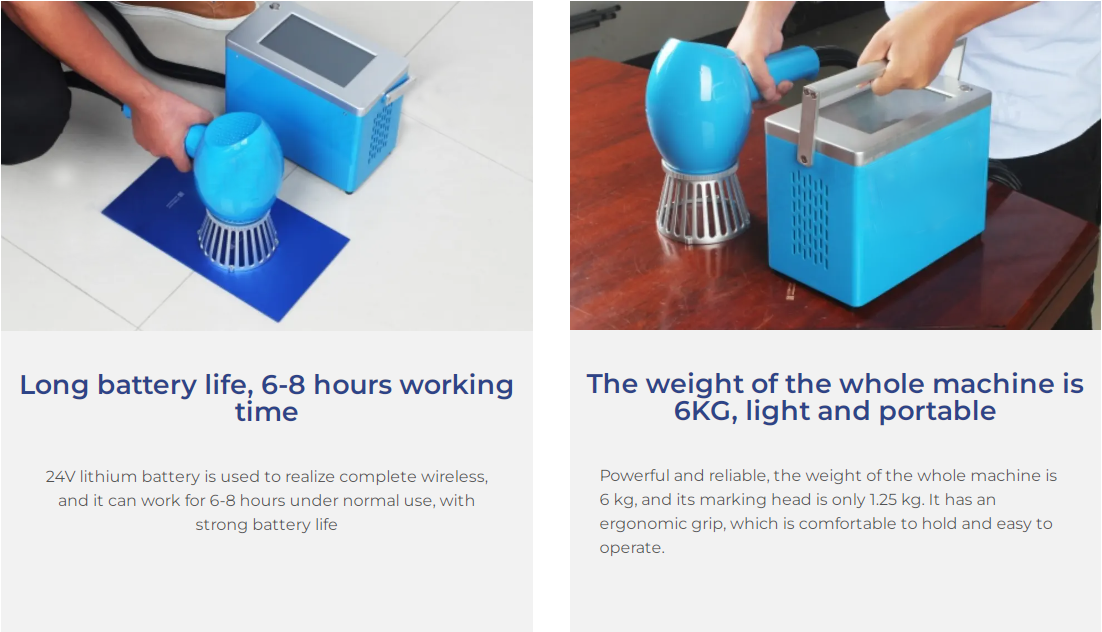

| Use environment | Battery life | It can work for 6-8 hours under normal use in one day |
| Cooling way | Built-in air cooling | |
| System power supply | 500W / 100-240V / 50/60Hz | |
| Other parameters | Operating system | linux system |
| File format | The software supports text, pattern, two-dimensional code, barcode, serial number, graphics and other marking content (standard USB input) | |
| Dimension | Control chassis: 255X135X200 mm Marking head: 258X120X260 mm | |
| Machine weight | Machine 6kg, Marking head 1.25kg | |

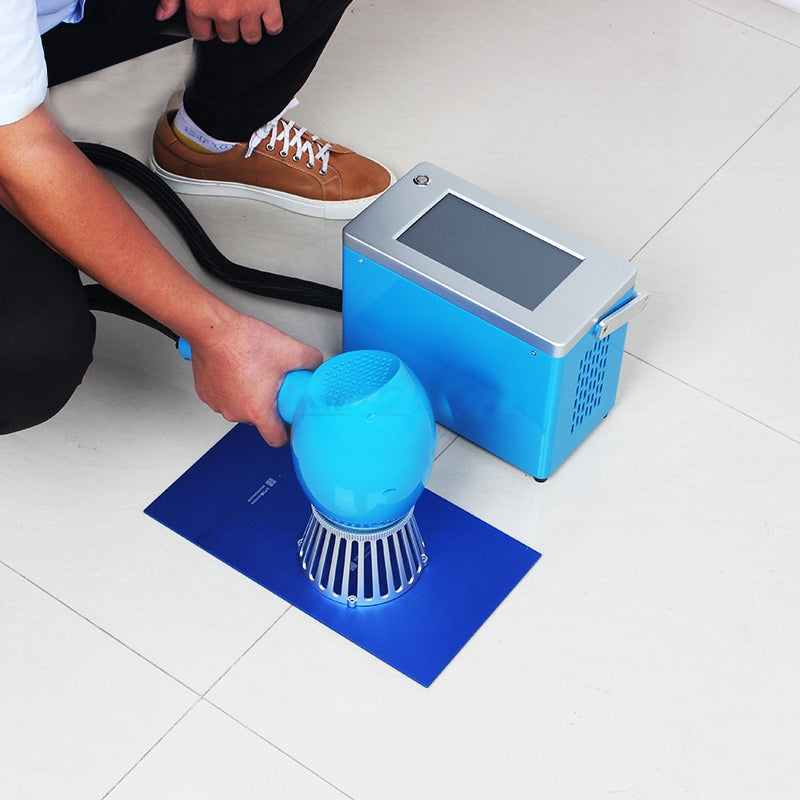

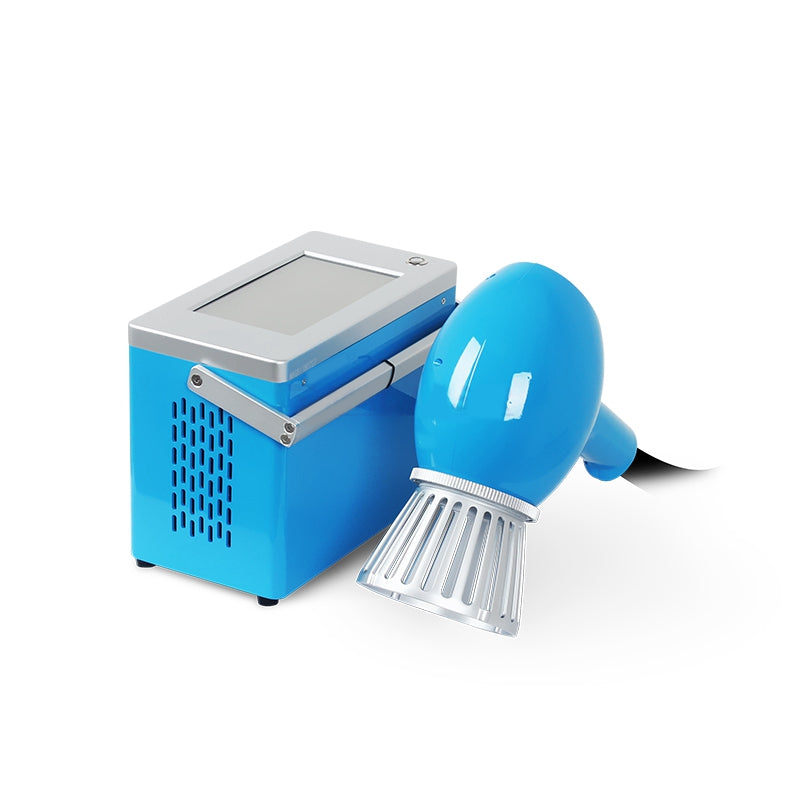

Q8 is powerful, solid and reliable. The weight of the whole machine is 6 kg, and its marking head is only 1.25 kg. It has an ergonomic grip, which is comfortable to hold and easy to operate.
Rear USB interface, software support: text, pattern, two-dimensional code, barcode, serial number, graphics and other marking content, in addition, Q8 also has a special box that is convenient for storage and can be carried to different places. It is one of the smallest rechargeable laser marking machines on the market!
Excellent for permanently marking traceable rails, rail couplings, water and steam pipes, handrails, tyres, straps for timber roof trusses and decorative ironwork and a variety of large iron products.
Feel free to hold your device and laser mark auto parts, tent frames, beach chairs, foil balls, computer cases, and anything you can identify as aluminum.
