The Q8A Handheld Intelligent Laser is a portable, battery-powered and fully autonomous marking machine! Thanks to its powerful 24V rechargeable lithium battery power supply system, it can maintain 6-8 hours of work under normal use, with strong endurance, and no cable drag, avoiding the embarrassment of sudden power failure during use. Its light weight and multi-functional, especially suitable for use in large, heavy or difficult to carry the workpiece on the perfect marking.
T he Q8A Handheld Intelligent Laser is a portable, battery-powered and fully autonomous marking machine! Thanks to its powerful 24V rechargeable lithium battery power supply system,
it can maintain 6-8 hours of work under normal use, with strong endurance, and no cable drag, avoiding the embarrassment of sudden power failure during use. Its light weight and
multi-functional, especially suitable for use in large, heavy or difficult to carry the workpiece on the perfect marking.

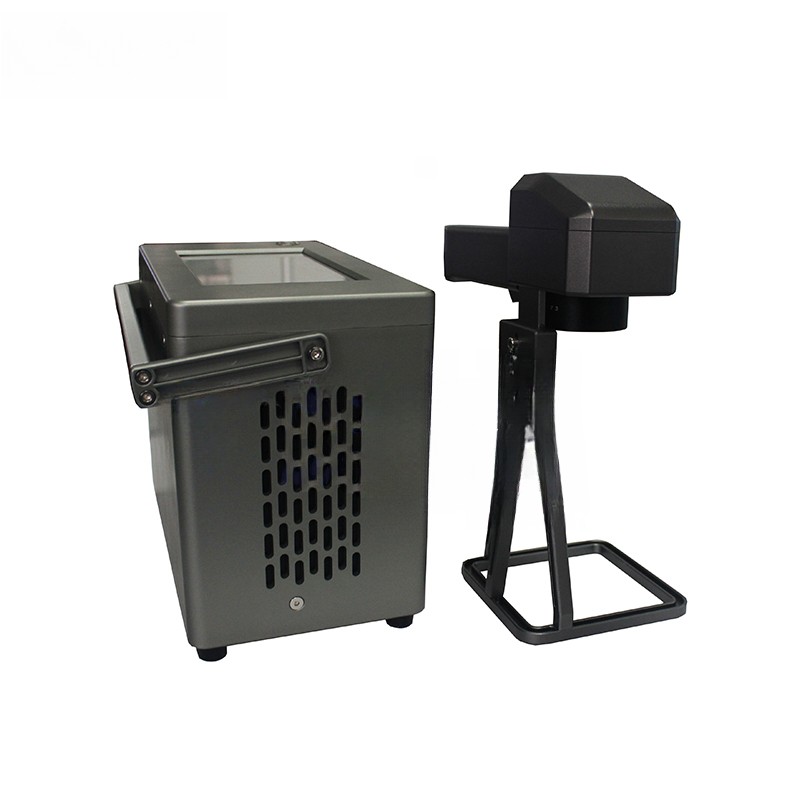

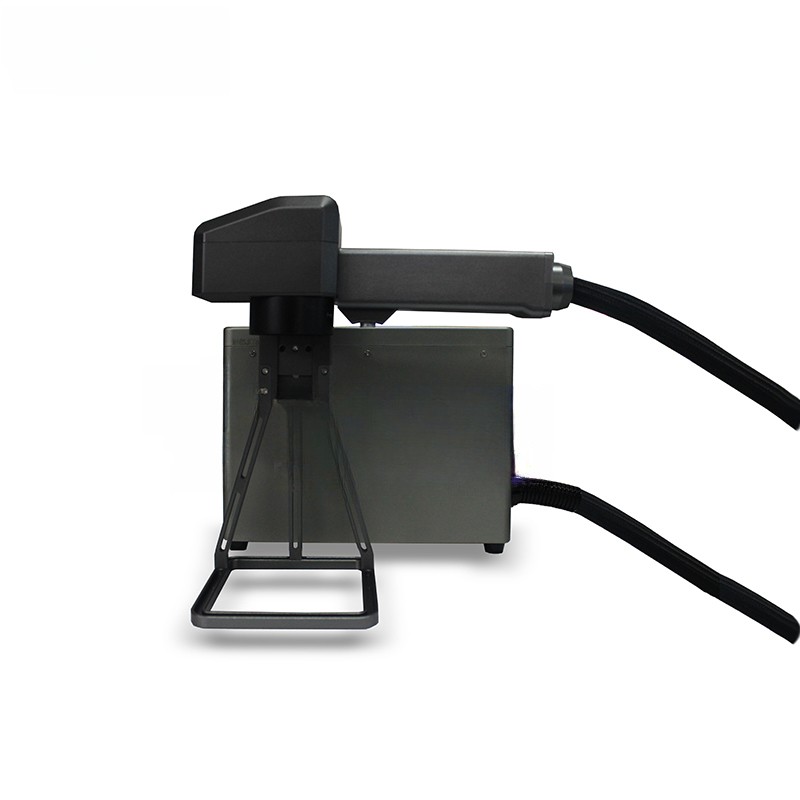

Powerful and reliable, the Q8A weighs 6 kg, its marking head is only 1.25kg, and it has an ergonomic grip that is comfortable to hold and easy to operate. Rear USB port,
software support: text, pattern, two-dimensional code, bar code, serial number, graphics and other marking content, in addition, Q8 has a convenient storage, can carry to different
locations of the special box. It is one of the smallest rechargeable laser marking machines on the market!
>> Powerful and reliable, the weight of the whole machine is 6 kg, and the marking head is only 1.25 kg. Ergonomic grip, comfortable grip, easy to operate;
>> 24V lithium battery to achieve complete wireless, normal use can maintain 6-8 hours of work;
>> MAX 20W fiber laser source, good spot quality, stable output light power, can be flexibly applied to metal materials and some non-metallic materials;
>> Increase the power control design, the device can be charged during work, to achieve continuous work, improve processing efficiency.
| Model series | Q8A | ||||
| Model number | Q8A-20 | Q8A-30 | Q8A-50 | ||
| Laser parameter | Output power | 19.5W | 26.5W | 50W | |
| Beam mass M² | ≤1.4 | ||||
| Pulse repetition rate | 27-60KHz | ||||
| Laser wavelength | 1064±5 | ||||
| Output power stability | ＜3% | ||||
| Optical characteristic | Marking range | 75mm | |||
| Engraving depth | ≤1mm (depending on power and time) | ||||
| Engraving speed | ≤1000mm/s | ||||
| repeatability | ±0.005 | ||||
| Minimum marking line width | 0.1mm | ||||
| Minimum character height | 0.15mm | ||||
| Use environment | Endurance time | It can work for 6-8 hours under normal use | |||
| Cooling mode | Built-in air cooling | ||||
| System power supply | 500W/100-240V/50/60Hz | ||||
| Other parameters | Operating system | Linux operating system | |||
| File format | Software supports text, pattern, two-dimensional code, bar code, serial number, graphics and other marking content (standard USB input) | ||||
| Overall dimension | Control box: 255X135X200 mm Marking head: 270X166X273mm
| Control chassis: 275x150x200mm
| |||
| Machine weight | Machine 6kg, marking head 1.25k
| Machine 6.5kg, marking head 1.25kg | |||
Model advantage
Wireless marking
Equipped with 24V lithium battery for complete wireless
Under normal use, it can maintain 6-8 hours of work, and the battery life is strong
Automatic start and stop design, standby 60 seconds automatic stop, save power and reduce consumption
100% portable
The machine weighs 6KG, the marking head is only 1.25KG, small and light, and it can be played as it goes
It is especially suitable for marking large, heavy or difficult to move workpieces
Special suitcases are easy to transport
High-quality light source
Advanced fiber 20W laser
High electro-optical conversion efficiency, good output beam quality, high reliability
It can be flexibly applied to metal materials and some non-metallic materials
Friendly operation page
Code clear independent coding system, powerful function, simple operation
Support text, pattern, two-dimensional code, bar code, serial number, graphics and other content
The host uses the linux system, which has reliable security and stability
