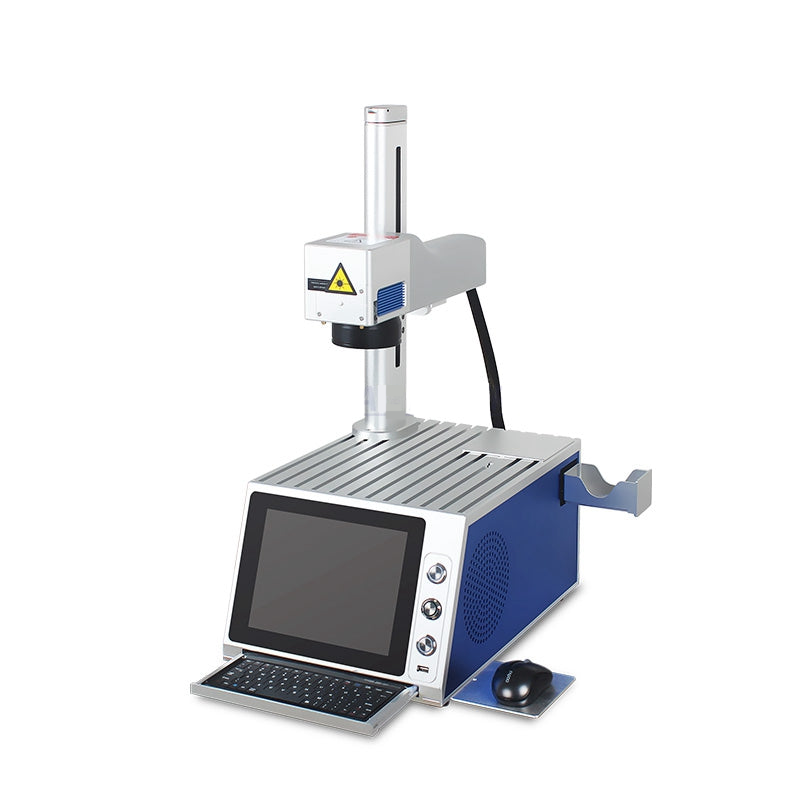

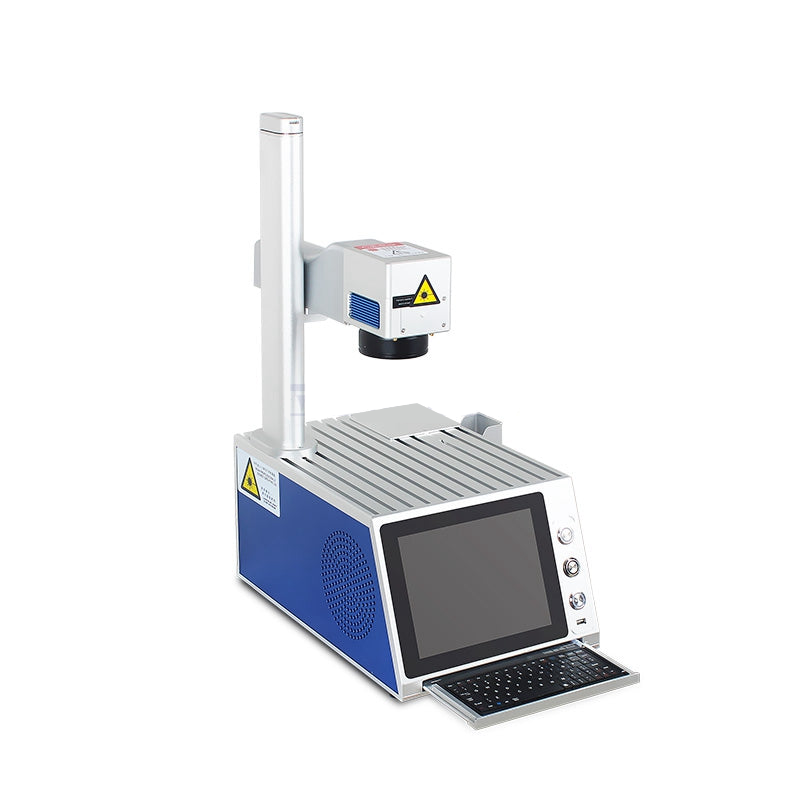

Increase your marking efficiency with the MZF-B MINI Fiber Laser Marking Machine. Achieve precise markings on a variety of materials with its advanced laser technology. Easy to use and maintain, this compact marking machine is perfect for businesses of all sizes.
DOWNLOAD FLEX SPEC SHEET
| Model | MZF-20B | MZF-30B | |
|---|---|---|---|
| Laser parameter | Laser source model | MFP-20X/20QS | MFP-30X/30QS |
| Outputpower | 18.5W | 30W | |
| Beam quality M2 | ≤1.4 | ≤1.4 | |
| Pulse repetition frequency | 27-60 kHz | 30-60 kHz | |
| Laser wavelength | 1064±5 | ||
| Output power stability | ＜3% | ||
| Working life | About 100,000 working hours (non-service life) | ||
| Optical properties | Marking area | 100~150mm (range optional) | |
| Engraving depth | ≤1mm (depending on power and time) | ||
| Engraving speed | ≤10000mm/s | ||
| Repeat accuracy | ±0.002 | ||
| Mininum line width | 0. 1mm | ||
| Minimum character height | 0.15mm | ||
| Use environment | Cooling method | Built-in air cooling | |
| System power supply | 500W / 220V / 50Hz (110V can be connected) | ||
| Temperature, humidity | 0~40°, 30%≤RH≤85%, air conditioner should be installed when used outside the range | ||
| Oil mist, condensation | Not allowed | ||
| Other parameters | Operating system | Windows operating system | |
| File format | All fonts/types of WINDOWS operating system font library (standard USB input) | ||

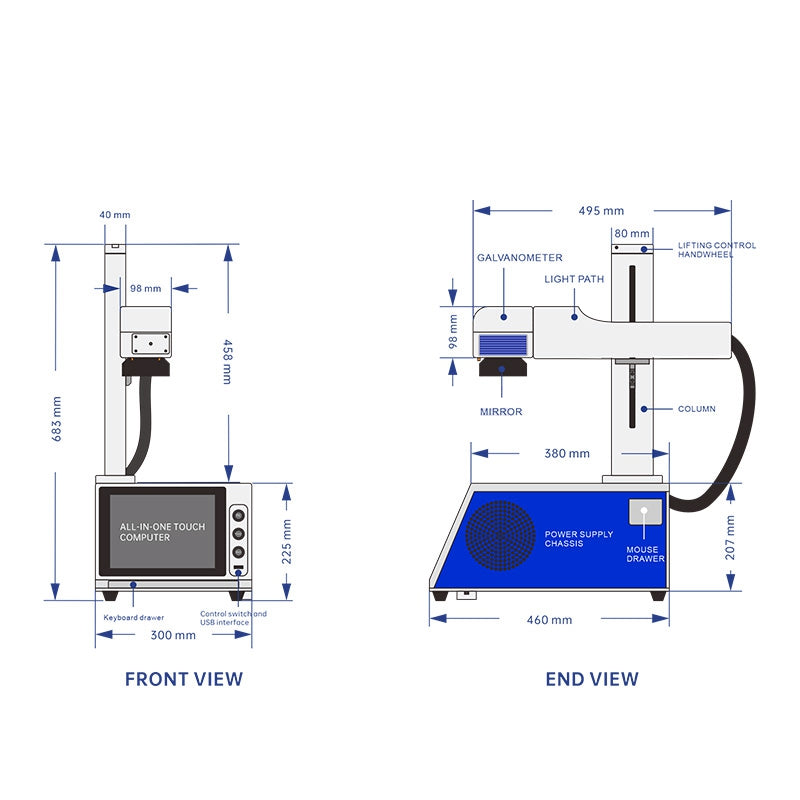

| Dimensions | 460X300X683 mm | ||

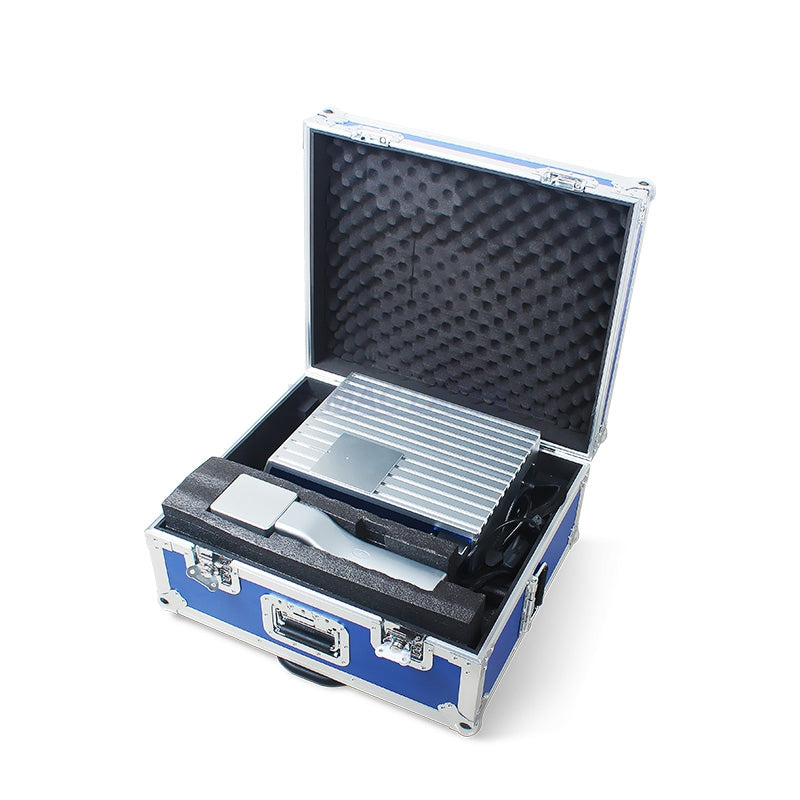

| Packing size | 550X440X690 mm | ||
| Machine weight | About 25kg | ||
The MZF-B series intelligent laser marking machine belongs to the desktop fifiber laser marking equipment. It
is a special model specially developed by Mac Laser for the needs of simple, compact, flflexible and
convenient equipment. The equipment is extremely cost-effective, It adopts high-quality fifiber laser source,
high-stability galvanometer system, hidden keyboard and mouse design, it can easily meet most common
laser marking applications.
The MZF-B series products use a 1064nm wavelength fifiber laser source, which is suitable for various metal
materials such as iron, copper and aluminum, gold, silver, and some non-metal materials such as PC, ABS,
PVC, and PC+ABS.
Feel free to hold your device and laser mark auto parts, tent frames, beach chairs, foil balls, computer cases, and anything you can identify as aluminum.
